AFRON SA 500 CE approved

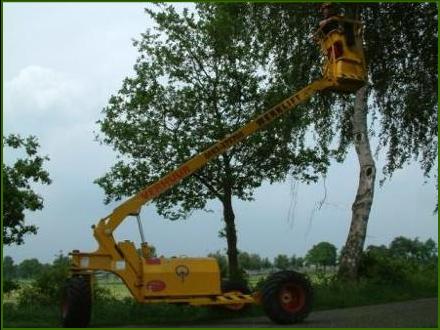

The Afron SA power man lift, 7 meters working height, is designed for the efficient, economical, and safe pruning of trees at elevated levels.

PROPELLING:

· Two drive wheels independent.

· One caster wheel.

· High torque planetary gear final drive - tapered and sealed ball bearings.

· Hydraulic drive.

· Brakes-Fail safe brakes, friction type lock two drive wheels as long as there is no hydraulic pressure build up in main hydraulic pump.

TIRES:
Three 26 x 1200 x 12'6 ply terra type flotation for low ground compaction, soft ground manoeuvrability, smooth ride.

ENGINE:
11 HP Lombardini diesel engine, easy start, dependable low fuel consumption, low maintenance, very quiet. The system is very efficient and you can operate the machine on idling R.P.M. Electric start and re-coil.

FUEL SYSTEM:
20 Litre fuel tank gravity feed, fuel filter - large filling port. Fuel sight gauge.

ELECTRIC SYSTEM:
12 V system electric start and charging 38 AMP battery. Battery main switch on/off.

CONTROL:
All controls at operator platform. Direct control on hydraulic system. Tower control hand & foot, additional control at engine base. Mechanical throttle foot control.

HYDRAULIC:

· Open center system. Replaceable suction filter element, Oil tank sight gauge, oil low shut off valve.

· Tower hydraulic cylinder heavy duty, descending flow control and load limiting valves. Hydraulic propelling motors orbit type. Over center valve on each drive wheel to prevent down hill run away. External hydraulic outlet power quick couplers. Oil flow 25l/min, 130 BAR.

FRAME:
Heavy duty throughout. 40 mm base and legs for low center of gravity and durability.

· Tower and internal levelling arm for smooth and clean exterior.

· Tower and platform hinge points widely separated.

· All hinged points bronze bushing, hard chrome plated pivot pins.

· Including tower hydraulic cylinder. Platform tubular constructed light and tough - Platform hinged up gate for easy access and safety.

· Platform fully enclosed for safety. Platform floor aluminum non-skid plate. All hydraulic hoses are well protected, as well as wires, cable control, etc. Shell type engine cover for good protection and access for servicing. Lock pad ear provided. All frame parts sand blasted, zinc painted undercoat with enamel top paint. All bolts are grade 8,8 zinc plated.

· Caster wheel - tapered bearing at wheel.

TOWING:
Quick wheels free wheeling and tow bar caster wheel - All wheels on sealed tapered and ball bearings. Max towing speed 25km/h.

SAFETY:
Machine meets or exceeds latest safety regulations known.

LITERATURE:

· Operation, maintenance and parts manual.

· Engine service and part manual.

· Recommendations for safe operation.

ATTACHMENTS OPTIONS:

· Air compressor kit

Power tools - Loppers and chain saws



AFRON SA 500 SPECIFICATIONS

For AFRON SA 500 impression click Photo

Tekstvak: AFRON platforms

PLATFORM HEIGHT

500 CM

WORKING HEIGHT

700 CM

PLATFORM LOAD CAPACITY

150 KG

OVERALL WIDTH

225 CM

OVERALL LENGTH (BOOM DOWN)

552 CM

OVERALL HEIGHT (BOOM DOWN)

137 CM

APPROX WEIGHT (DEPENDING ON MODEL/ATTACH.)

1300 KG
