TELESCOPE:

· Arm extended by 2.5 meters

· Safety locking valve on all cylinders

PROPELLING:

· Two drive wheels.

· Flotation type tires for easy manoeuvring and low ground compaction.

· Planetary gear with automatic wet disc brakes.

ENGINE:

· 3 cylinder liquid cooled 20 H.P. diesel engine.

· Electric start and shut off.

· Engine speed up system on platform.

ELECTRIC SYSTEM:

· 63 amp. battery, master switch, warning signals for engine oil pressure, battery charge and water temperature.

· Engine start and shut off control.

· Electro/hydraulic platform movement - allows operator to lift, swing, and extrude platform position without running diesel engine.

OPERATING CONTROL

A. FROM WORK PLATFORM:

6 hydraulic controls:

· Steering

· arm extension

· Propelling

· Elevation

· platform levelling

· Swing

B. FROM MACHINE FRAME:

· Arm elevating/lowering control.

· Engine oil pressure, battery charge, and water temperature warning signals.

· Engine starting and shut off control.

· Battery master switch.

· Operating button for electro/hydraulic system.

TOWER ELEVATION:
Tower descending speed adjustment and safety locking valve are built into the lift cylinder.

PLATFORM:

· Levelling automatically.

· Can be adjusted manually with hydraulic control.

· Safety locking valve on platform cylinder.

HYDRAULIC SYSTEM:
A. Two hydraulic systems:

· Propelling (open center).

· Controls (open center).

B. Oil tank: 84 litres capacity/ Includes:

· Suction filter (replaceable element type).

· Return filter (replaceable element type).

· Oil level and temperature gauges.

· Filing cap/breather.

HYDRAULIC OUTLET:
Auxiliary oil outlet at platform to operate hydraulic tools (open center) 25l/min, 130 BAR.

FUEL SYSTEM:
32 litre diesel fuel tank with external element type filter.

TOWING:

· Quick disengage drive wheels, hydraulic valve for disconnecting hydraulic steering cylinder.

· Tow bar and towing steering system

AFRON RST 10 SPECIFICATIONS

AFRON RST 10 CE approved

The Afron "RST 10" power man lift, 10 meters working height, provides an extended access into confined areas. It is fast, efficient, safe and economical.

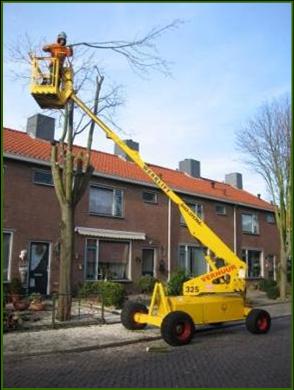

For AFRON RST 10 impression click Photo

Tekstvak: AFRON Platforms

LITERATURE:

· Operation, Maintenance and Parts Manual.

· Engine service and parts manual.

· Recommendations for safe operation.

FINISH:

· Machine metal parts are sand blasted, primed and finished with spray-paint.

· Machine bolts are grade 8,8 zinc plated.

CE - APPROVAL:
Machine is tested and approved for C.E. standard by the T.U.V.

PLATFORM HEIGHT

780 CM

WORKING HEIGHT

1000 CM

PLATFORM LOAD CAPACITY

250 KG

SWING (45 degrees to each side)

90 degrees

OVERALL WIDTH

250 CM

OVERALL LENGTH (BOOM DOWN)

CM

OVERALL HEIGHT (BOOM DOWN)

CM

APPROX WEIGHT (DEPENDING ON MODEL/ATTACH.)

CM
