TELESCOPE:

· Arm extended by 2.5 meter

· Safety locking valve on all cylinders

PROPELLING:

· Two drive wheels.

· Flotation type tires for easy manoeuvring and low ground compaction.

· Planetary gear with automatic wet disc brakes.

ENGINE:

· 3 cylinder liquid cooled 20 H.P. diesel engine.

· Electric start and shut off.

· Engine speed up system on platform.

ELECTRIC SYSTEM:

· 63 amp. battery, master switch, warning signals for engine oil pressure, battery charge and water temperature.

· Engine start and shut off control.

· Electro/hydraulic platform movement - allows operator to lift, swing, and extrude platform position without running diesel engine.

OPERATING CONTROL

A. FROM WORK PLATFORM:

7 electric/hydraulic controls:

· steering

· arm extension

· propelling

· elevation first section

· elevating second section

· platform levelling

· Swing

B. OPERATING FROM MACHINE FRAME:

· All 7 functions possible as available from work platform

· Arm elevating/lowering control.

· Engine oil pressure, battery charge, and water temperature warning signals.

· Engine starting and shut off control.

· Battery master switch.

· Operating button for electro/hydraulic system.

TOWER ELEVATION:
Tower descending speed adjustment and safety locking valve are built into the lift cylinder.

PLATFORM:

· Levelling automatically.

· Can be adjusted manually with hydraulic control.

· Safety locking valve on platform cylinder.

HYDRAULIC SYSTEM:
A. Two hydraulic systems:

· Propelling (open centre).

· Controls (open centre).

B. Oil tank: 84 litres capacity/ Includes:

· Suction filter (replaceable element type).

· Return filter (replaceable element type).

· Oil level and temperature gauges.

· Filing cap/breather.

HYDRAULIC OUTLET:
Auxiliary oil outlet at platform to operate hydraulic tools (open centre) 25 l/min. 130 BAR.

FUEL SYSTEM:
40 litre diesel fuel tank with external element type filter.

TOWING:

· Quick disengage drive wheels, hydraulic valve for disconnecting hydraulic steering cylinder.

· Tow bar and towing steering system

LITERATURE:

· Operation, Maintenance and Parts Manual.

· Engine service and parts manual.

· Recommendations for safe operation.

FINISH:

· Machine metal parts are sand blasted, primed and finished with spray paint.

· Machine bolts are grade 8,8 zinc plated.

CE - APPROVAL:
Machine is tested and approved for C.E. standard by the T.U.V.



AFRON RST SPECIFICATIONS

AFRON RST 12 CE approved

The Afron "RST 12" power man lift, 12 meters working height, provides an extended access into confined areas. It is fast, efficient, safe and economical.

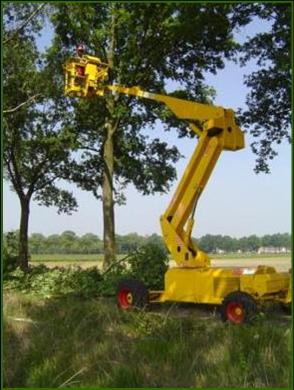

For AFRON RST 12 impression click Photo

Tekstvak: AFRON Platforms

PLATFORM HEIGHT

980 CM

WORKING HEIGHT

1200 CM

PLATFORM LOAD CAPACITY

220 KG

SWING (45 degrees to each side)

90 degrees

OVERALL WIDTH

250 CM

OVERALL LENGTH (BOOM DOWN)

700 CM

OVERALL HEIGHT (BOOM DOWN)

 250 CM

APPROX WEIGHT (DEPENDING ON MODEL/ATTACH.)

 4360 CM
